The container for the Neuron ESB server runtime is a single Windows Service Application named the ESB Service. The ESB Service reads its configuration and creates a collection of child services, each in its own AppDomain. As shown below, the child services provide connection, publishing, messaging, and infrastructure services.

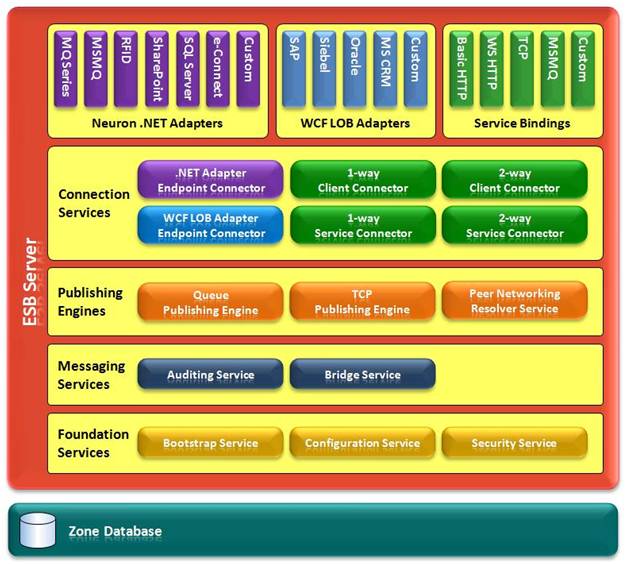

Figure 1: ESB Server Architecture
The adapters and bindings provide connection to service-oriented endpoints and non-service endpoints. [suggestion delete this sentence ] All three represent extensibility points to connecting new kinds of systems and services to the ESB.
WCF Service Bindings provide connections to web services.
.NET adapters provide easy-to-write .NET connections to systems and resources.
WCF LOB adapters provide connections to legacy systems and line-of-business systems.
Client connectors allow applications to connect to the ESB using web services.
Service connectors allow the ESB to connect to web services. When combined with a client connector, service connectors can provide routing and mediation.
Adapter endpoints maintain a connection to additional resources and applications. Based on the capabilities and configuration of the adapter, the adapter may be a message source or a message destination.
Publishing engines provide server-side support for various types of topic channels. Peer, TCP, and MSMQ topics require a publishing service to facilitate communication.
An Auditing Service stores sent and received messages to an audit database for topics that have auditing enabled in the configuration.
A Bridge Service provides real-time or queued-relay bridges across topics and zones
The Bootstrap Service provides a connection point to the messaging fabric for endpoint applications.
The Configuration Service provides publishers and subscribers with configuration information.
The Security Bridge Service provides authentication and authorization of parties.
